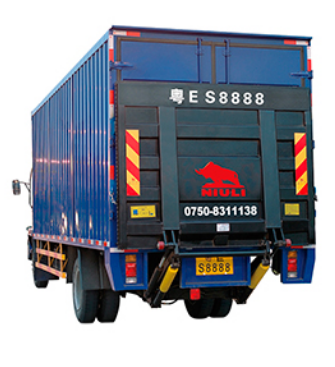

Tail lift can obviate the needs to use machinery such as a forklift truck in order to load heavy items on to a vehicle, or can be used to bridge the difference in height between a loading dock and the vehicle load bed
The tail lift can be installed easily and fast.The com-plete hydraulic and electrical system is integrated into the lift.The screws are all that is eeded to mount the lift to the truck.Hook up the battery cables and the lift is ready to aller.
battery cables and the lift is ready to go.
Dock de chargement et le lit de chargement du véhicule. Le lifting de queue peut être
Détail du produit
| Modèle | NL-QB10 / 105 | NL-QB15 / 120 | NL-QB15 / 150 | NL-QB25 / 160 |
| NL-QB15 / 105 | NL-QB20 / 120 | NL-QB20 / 150 | NL-QB30 / 160 | |
| Taille de la plate-forme (mm) | 1800 × 1800 | 1800 × 1800 | 2100 × 1800 | 2100 × 1800 |
| 1900 × 1800 | 1900 × 1800 | 2200 × 1800 | 2200 × 1800 | |
| 2000 × 1800 | 2000 × 1800 | 2300 × 1800 | 2300 × 1800 | |
| 2100 × 1800 | 2100 × 1800 | 2400 × 1800 | 2400 × 1800 | |
| 2200 × 1800 | 2200 × 1800 | 2500 × 1800 | 2500 × 1800 | |
| Capacité (kg) | 1000/1500 | 1500/2000 | 1500/2000 | 2500/3000 |
| Poids automatique (kg) | 400-450 | 450-520 | 550-600 | 650-700 |
| Puissance du moteur (KW) | 1.6 / 2.2 | 1.6 / 2.2 | 2.2 / 3 | 3 |
| Longueur du bras du cadre (mm) | 750 | 800 | 900 | 1000 |
| Cadre Largeur intérieure (mm) | 846/948 | 846/948 | 948 | 948 |
| Hauteur du véhicule (mm) | 1050 | 1200 | 1500 | 1600 |
| Moteur | DC12V-24V / 100AH-160AH | |||
| Angle de travail de la plate-forme (°) | 5-9 | 5-9 | 5-9 | 5-9 |
| Moyen vitesse de levage (mm / sec) | 60-80 | 60-80 | 60-80 | 60-80 |
Huile hydraulique | 46 # huile hydraulique | |||
